QUESTIONNAIRE FOR MULTI-DRILL UNIT

Please enter the required details
1 Name :
2 Address :
3. Telephone :
4. Email Address :

Specifications of the Machine on which Multi-Drilling Unit will be used

a Make :
b Type / Model :
c Specifications of the Motor for Multi-Drilling Head :

1 : Make
2 : Power in kW
3 : RPM range
d Working base area :
e Maximum spindle traverse :
f Spindle nose taper :
g Distance between spindle nose to base (Table surface) :
1 : Maximum
2 : Minimum
h Speed range for spindle :
i Distance between spindle axis & column ways :
j Column size :
k Quill diameter :
Specifications of Components to be processed
a Part Name :
b Drawing Number
(Please enclose the drawing)
:
c Material of the part :
d Hardness range of the part :
e Operation to be carried out :

1 : Drill size
2 : Number of Drills
3 : Pitch circle diameter

Specify Cutting Tools to be used
a Specify Cutting Tools to be used :
Quality Requirement
a Tolerance for the Drill Hole :
b Tolerance for pitch circle :
Details of jig / fixtures
Type A






A Dia :
B Dia :
C :
D :
E Dia :
F :
MT :

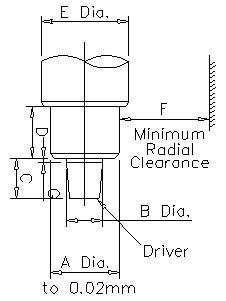

Type B




A Dia :
B Dia :
C :
D :
E Dia :
F :
G :

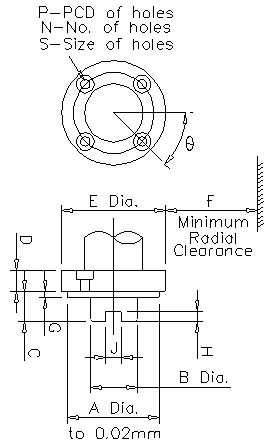

Type C


A Dia :
B Dia :
C :
D :
E Dia :
F :
G :
H :
J :
P :
N :
S Dia :
If Jig is to be designed by us, give details of specific features required.

Please mention the type & give us details as mentioned in the drawing. (Please click the type to fill the details of designe.)
